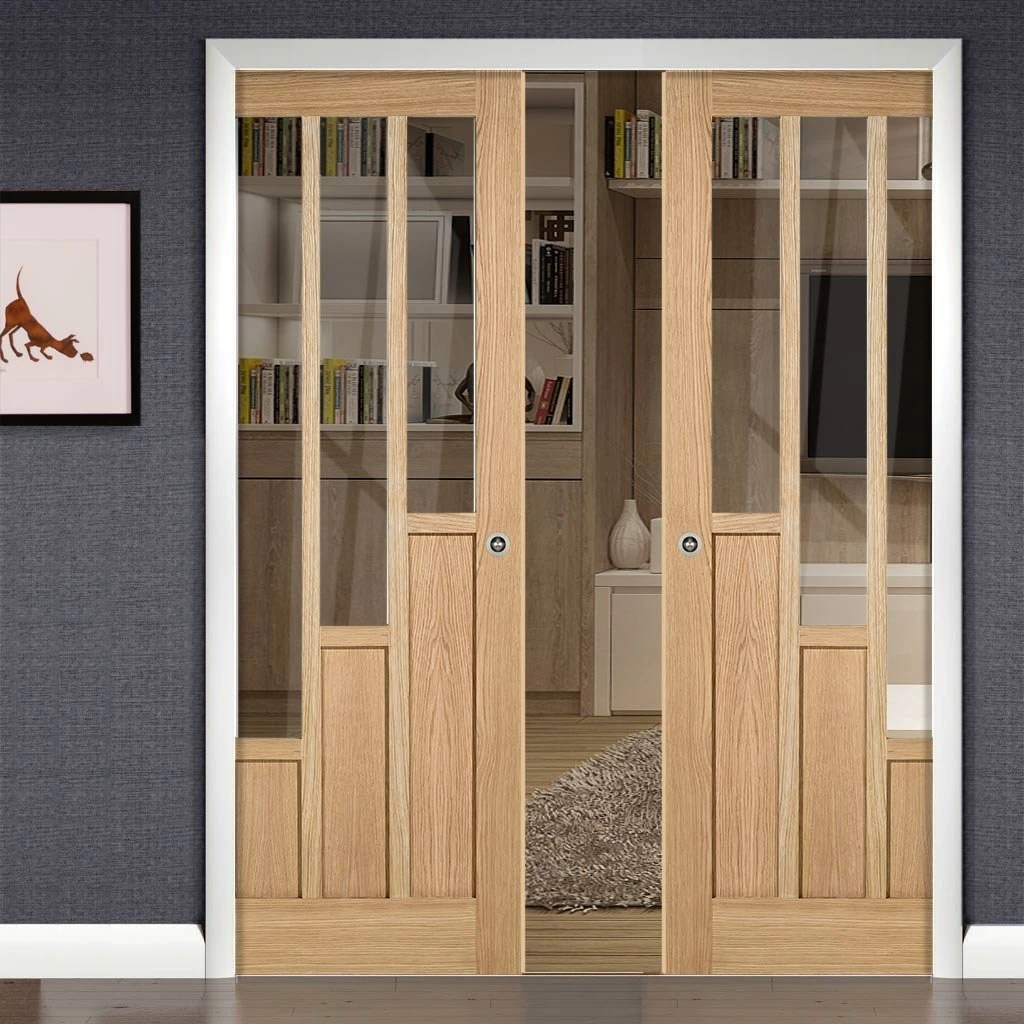

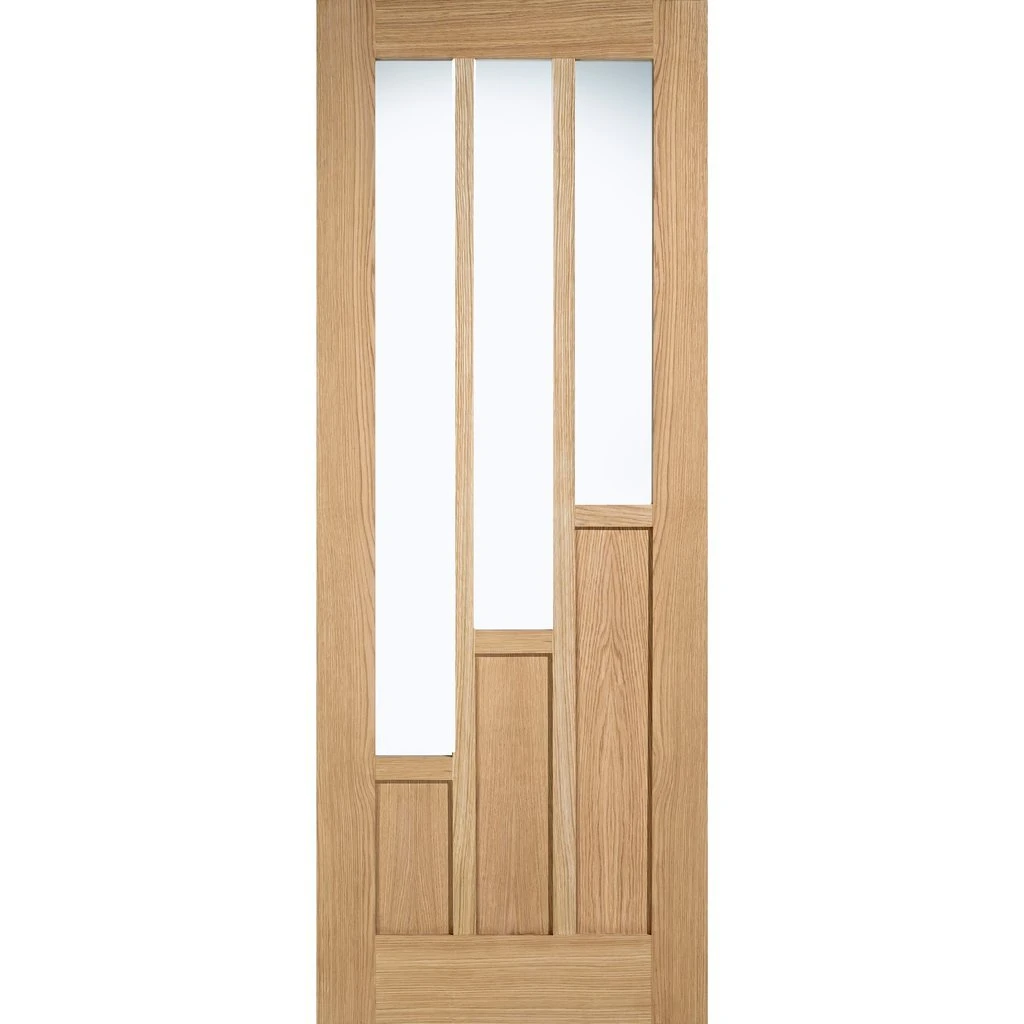

Coventry Contemporary Oak Double Evokit Pocket Door – Clear Glass

—SHORT—

We deliver for free to most UK Mainland postcodes and in order to offer best value and safety we include the soft closer.

All pocket cassettes may be kerbside delivery only and not in to the home….. doors are delivered separately.

All doors slide open left and right, delivery will be from at least two separate suppliers.

—LONG—

A router will be required for door(s) installation.

Please click here to find our manufacturers care and decoration advice for this door.

System operation viewed from above:

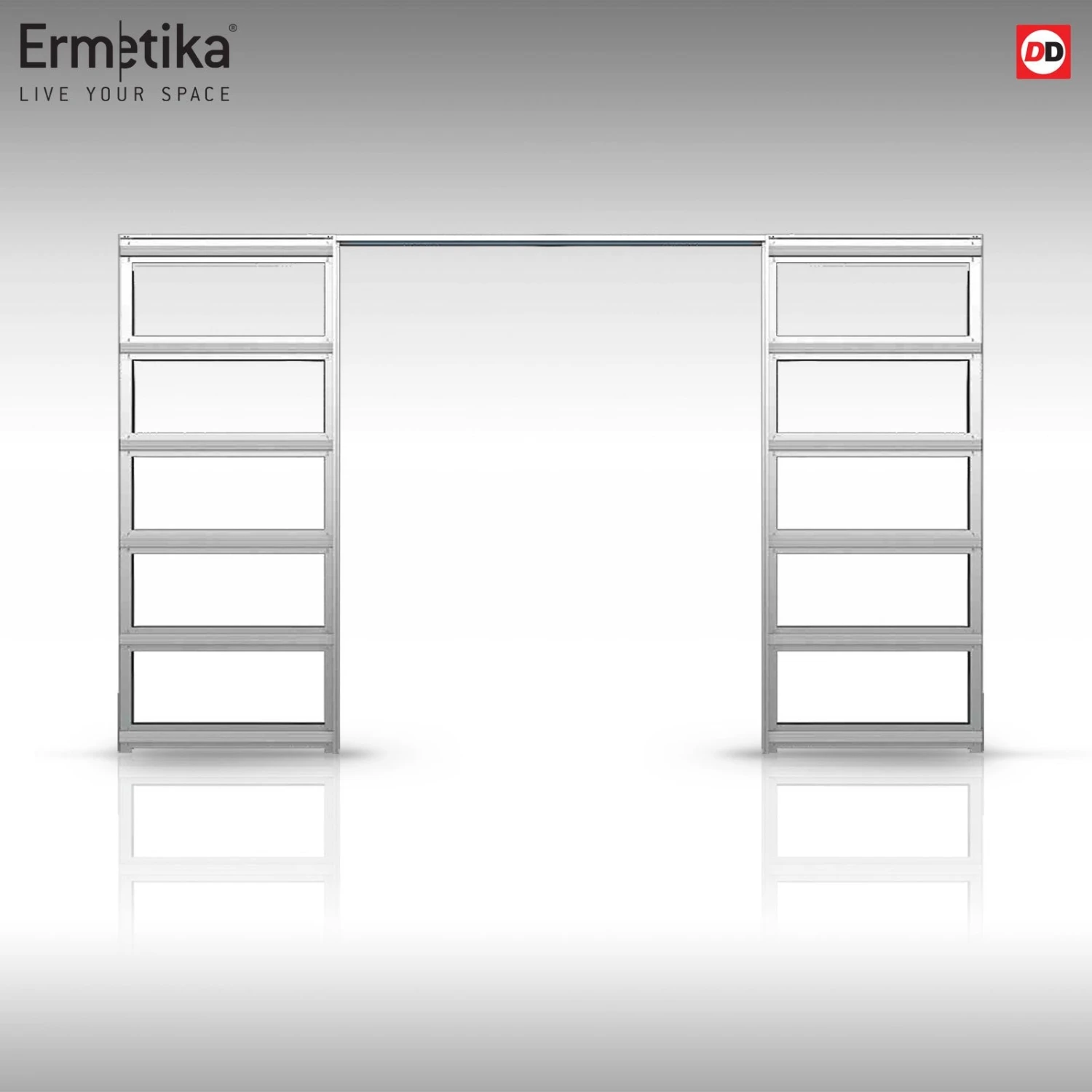

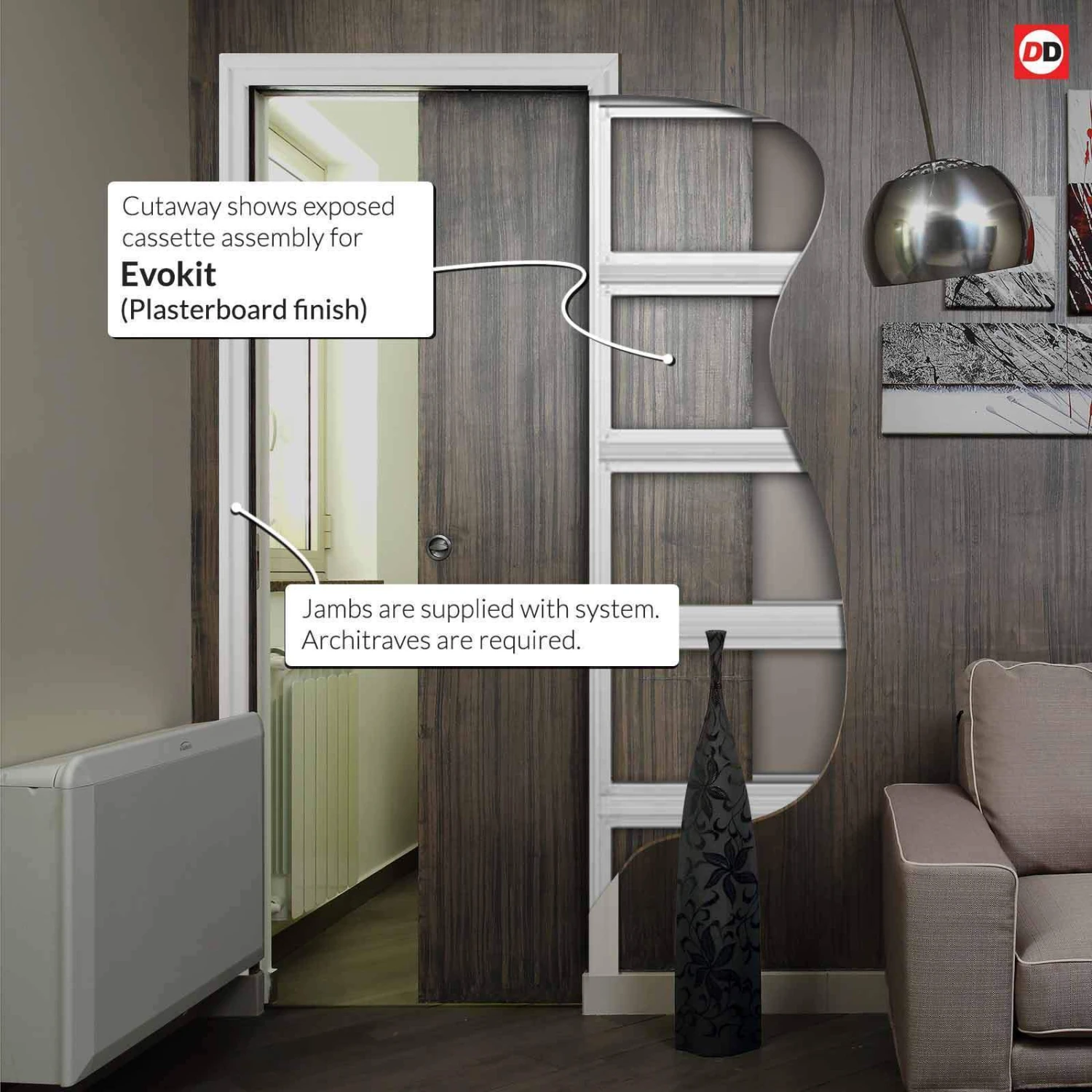

Our all new Ermetika interior double pocket door systems have a free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the doors straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings, soft close is also included. The door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.

See our “Dimensions PDF” for all sizes but use as a guide only.

The Ermetika pockets are available in two standard widths for a finished wall thickness of either 100mm or 125mm.

Email [email protected] to receive a quote for any special sizes.

The idea is to build the pocket to the same thickness as the studwork – 75mm (3″) or 100mm (4″) – which are the two standard studwork sizes generally in use, so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of either 100mm (4″) or 125mm (5″).

Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm or 79mm.

Size limitations apply for the following items – Soft Close, Self Close and Simultaneous Openers – please refer to the individual accessory description.

The Easy stop AB twin dual soft closer/opener, all other accessories for pocket doors including flush door handles can be purchased separately.

Please Note: If the Simultaneous Opener is purchased, the AB Soft Closer will not be included as the two are not compatible with each other. However, another suitable type of soft closer will be provided.

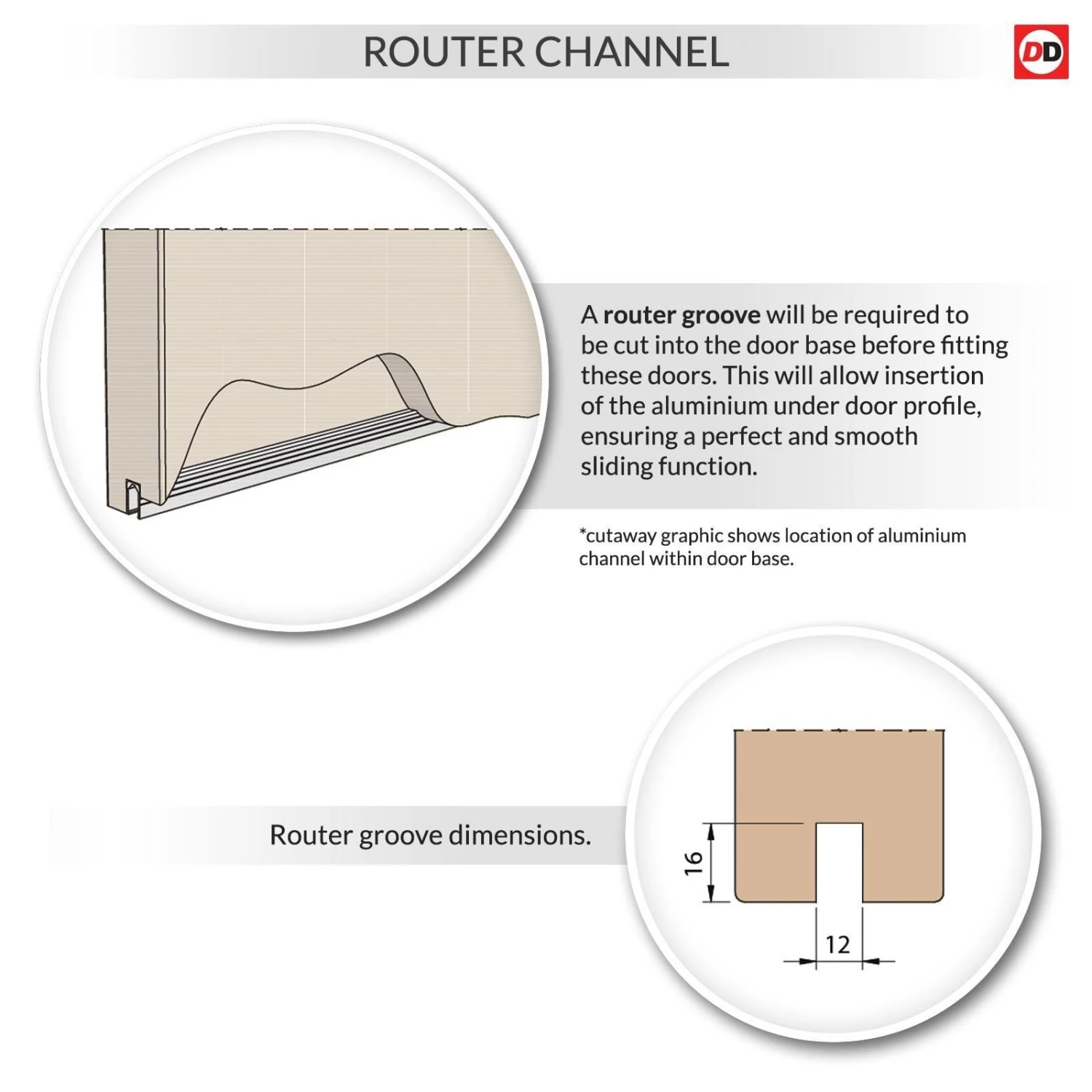

Doors will require a routered channel to be created in the bottom of each door to accommodate the supplied track guides.

The double pocket door frame must be concealed with your own wall and architraves when installing.

Note: These are two individual doors put together as two pairs and as such we cannot guarantee a perfect colour match.

—DETAILS—

Suggested Minimum Skill Level: Advanced DIY & Specialist Joinery Tools Required.

###

Dimensions: 35mm or 40mm doors (depending on choice and availability) and a frame section of 100mm or 125mm external dimensions/54mm or 79mm internal cassette cavity.

###

Notes: The sizes listed above are for the overall door and pocket set which includes the metal pocket frame and EasyStop AB soft closer/opener but does not include any handles, architrave or plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.

###

Important: All pocket door items are supplied in kit form, any glass is pre-installed in the door.

###

Normal Availability for our Delivery Service: See delivery icon on top of the product page.

###

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide. All jamb kits supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.

###

Assembly: Self Assembly may take 3-4 hours

###

Construction: All doors are 35mm or 40mm thick depending on your choice, cores are semi solid/solid MDF or similar with a quality timber veneer or surface material for painted and white versions.

###

Price: The price quoted is for the door(s), pocket system frame, all track fittings and soft closer, but no handles, any glass shown is pre-installed in the doors.

—PDFS—

Simultaneous Opening Kit: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/Simultaneous-opening-kit-direct-doors-all-languages-2020.pdf?v=1603964726

###

Cassette Dimensions: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/double-evokit-pocket-doors-dimensions-directdoors.pdf?v=1603119392

###

Fitting Instructions with Soft Closer: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/Fitting_Instructions_Evokit_2022_October_-_DirectDoors-01_25c0b760-2257-47f8-a62f-89f33bc105b8.pdf?v=1675956567

###

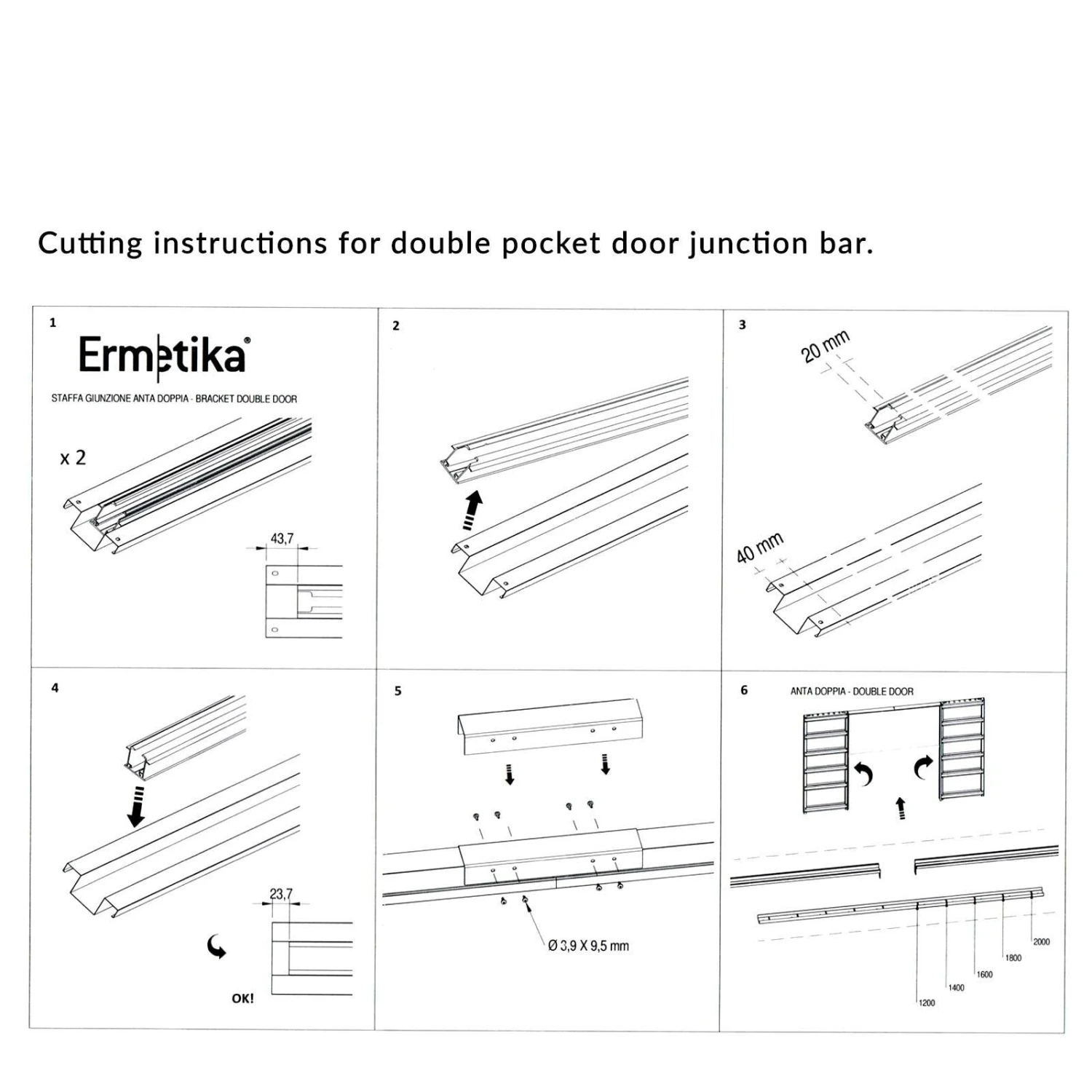

Junction Kit Installation: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/Junction-Kit-Directdoors-Evokit-Ermetika-DBL.pdf?v=1659437039

###

Technical Specifications: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/single-evokit-technical-18-10-18.pdf?11254566461527364143

###

Safety Glass: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/safety-toughened-glass-certification-BSEN12600-information-directdoors.pdf?v=1643887053

###

Simultaneous opener with soft closer installation: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/Simultaneous-soft-close-2020.pdf?v=1603898812

—MEDIA—

Evokit Cassette: //www.youtube.com/embed/81u8N41CMCI

###

Plasterboard Evokit: //www.youtube.com/embed/Kpnj2OvEEro

###

Jamb Kit Installation: //www.youtube.com/embed/y9hyuSd7T0o

###

EasyStop AB Installation: //www.youtube.com/embed/kvYMflwDLVI

###

Junction bar installation: //www.youtube.com/embed/5PEZsdn5uOc
