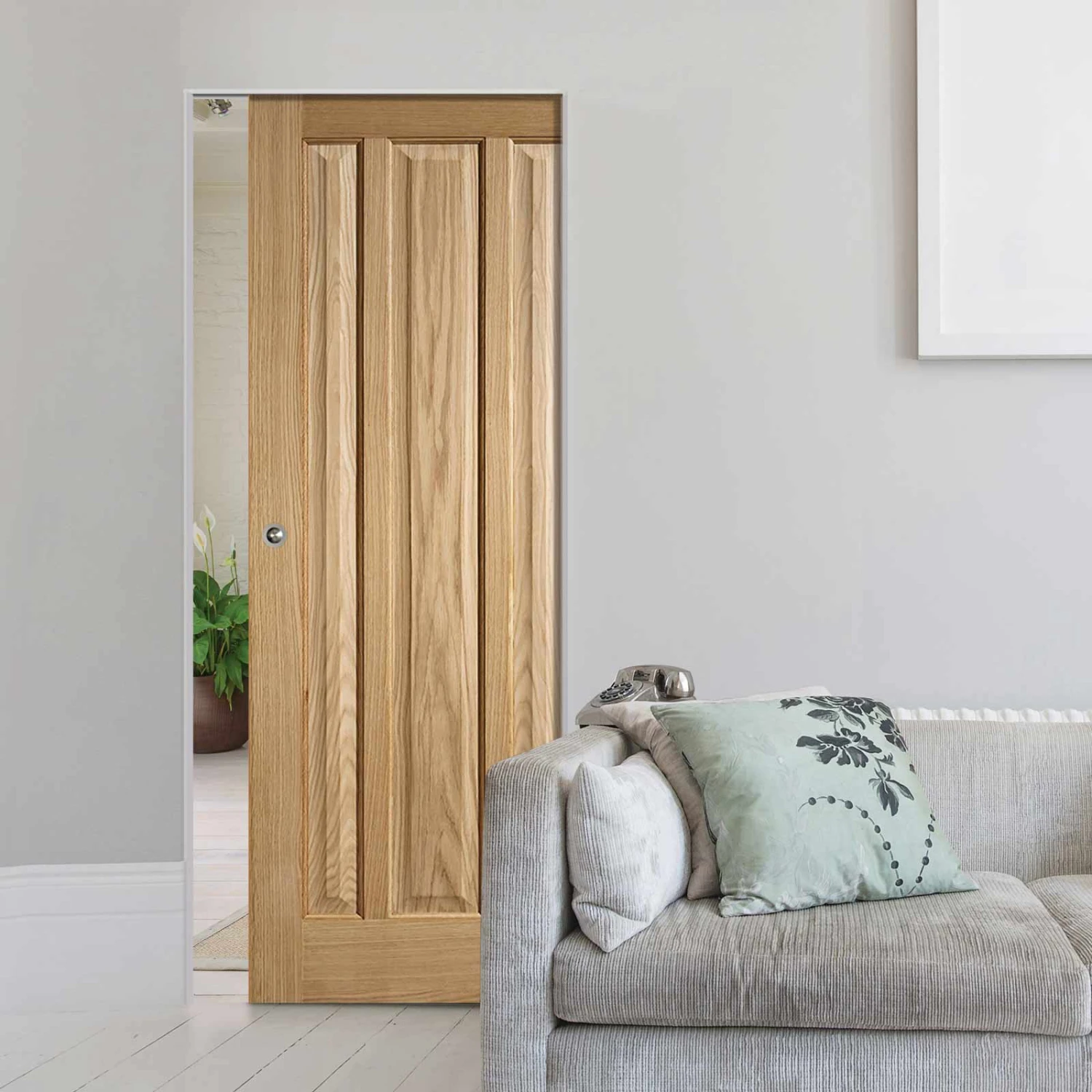

Kilburn 3 Panel Oak Absolute Evokit Single Pocket Doors

—SHORT—

All pocket cassettes may be kerbside delivery only and not in to the home….. doors are delivered separately.

We deliver for free to most UK Mainland postcodes.

All doors can slide open left or right, you decide when installing them, delivery will be from two separate suppliers.

—LONG—

A router will be required for door(s) installation.

Please click here to find our manufacturers care and decoration advice for this door.

System operation viewed from above:

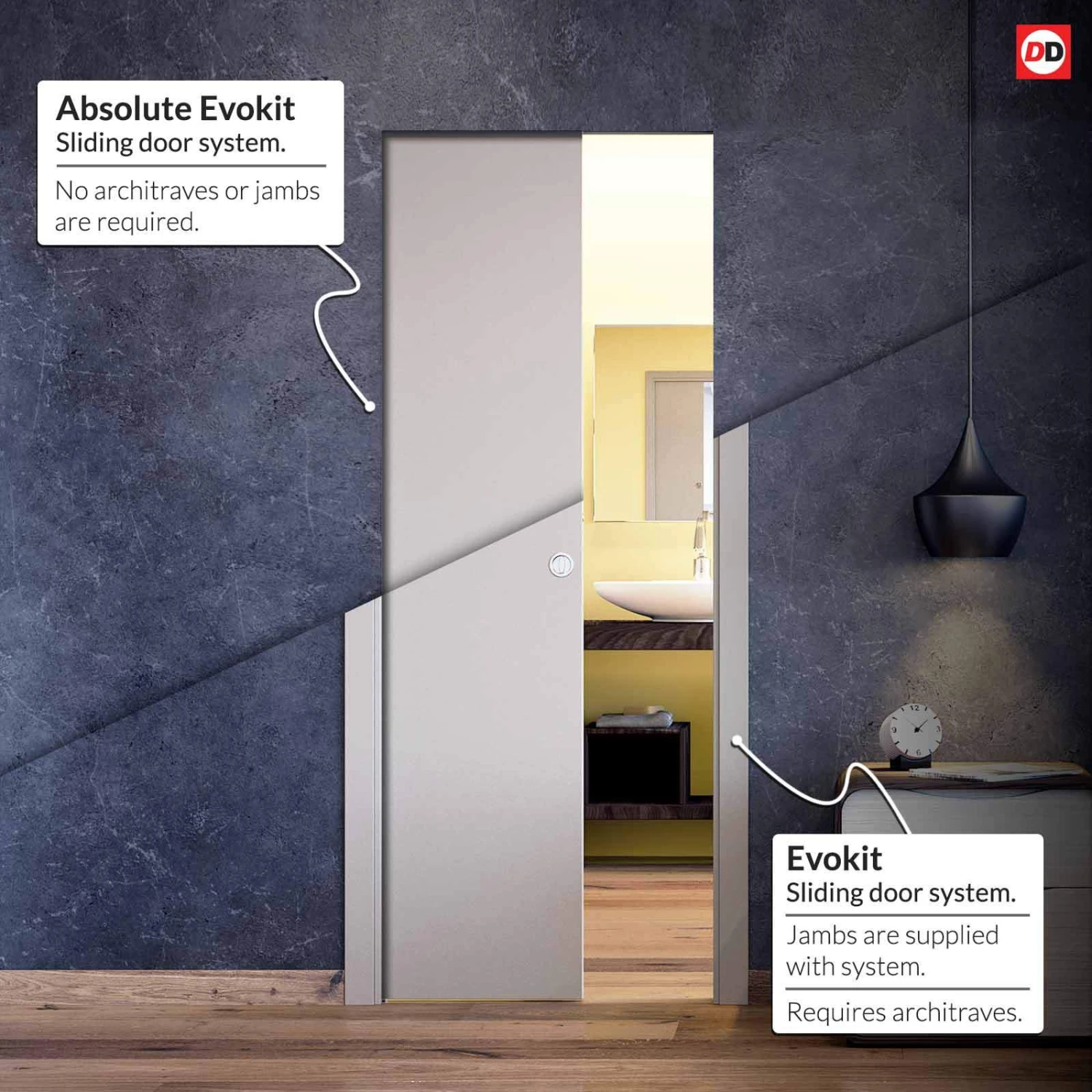

Absolute Evokit, when you don’t want to see any architraves or jambs, just a modern, clean finish allied to a cutting edge system for a truly contemporary feel.

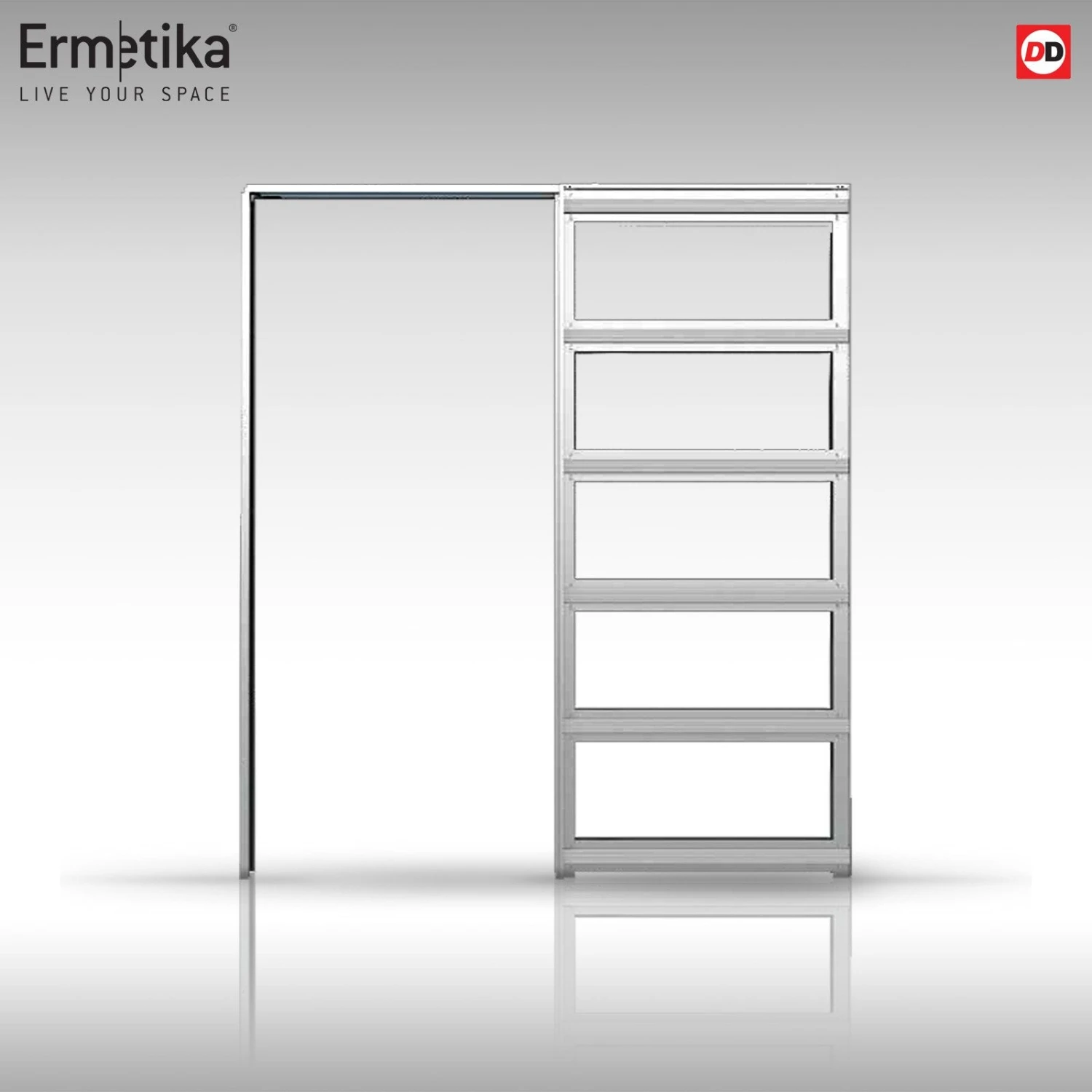

Our all new Ermetika interior single pocket door systems have a free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the door straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings, the door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.

See our “Dimensions PDF” for all sizes but use as a guide only.

The Ermetika Absolute Evokit pockets are available in one standard width for a finished wall thickness of 100mm but it is envisaged that the 125mm will be available in the future.

Email [email protected] to receive a quote for any special sizes.

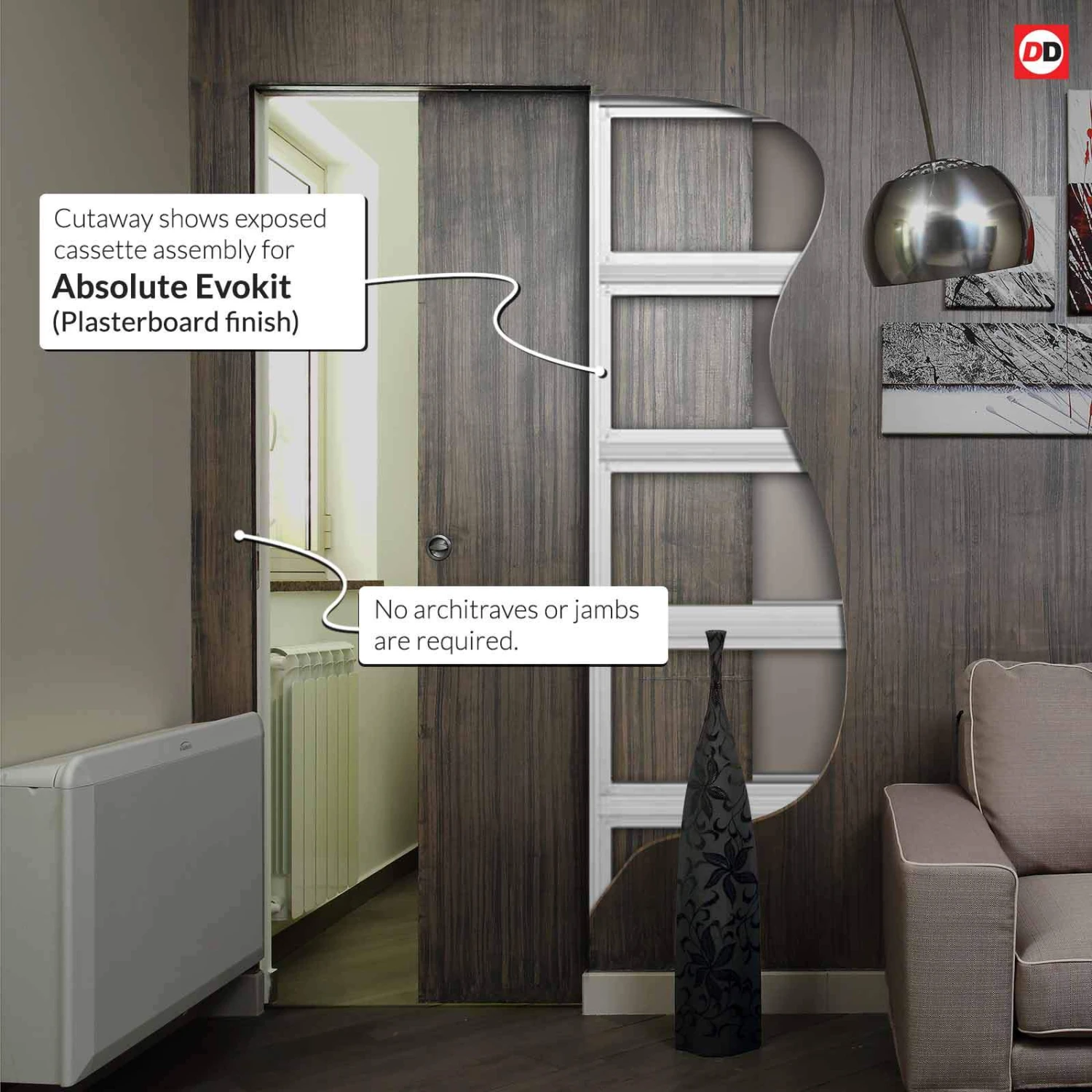

The idea is to build the pocket to the same thickness as the studwork – 75mm (3″) which is the standard studwork size generally in use, so that you can directly continue using the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of 100mm (4″) four inches.

The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm or 79mm if and when the 125mm cassette system is available.

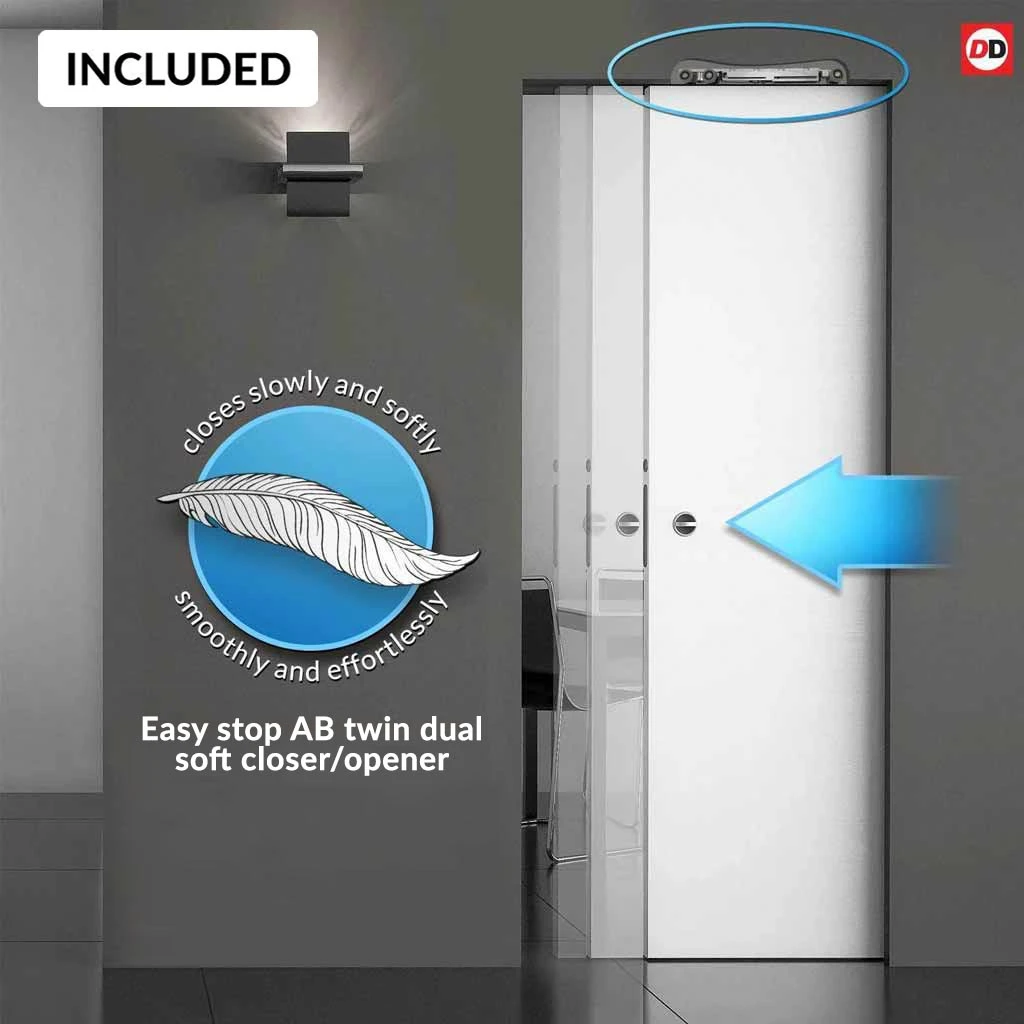

An Easy stop AB twin dual soft closer/opener accessory to close the door slowly and softly is included.

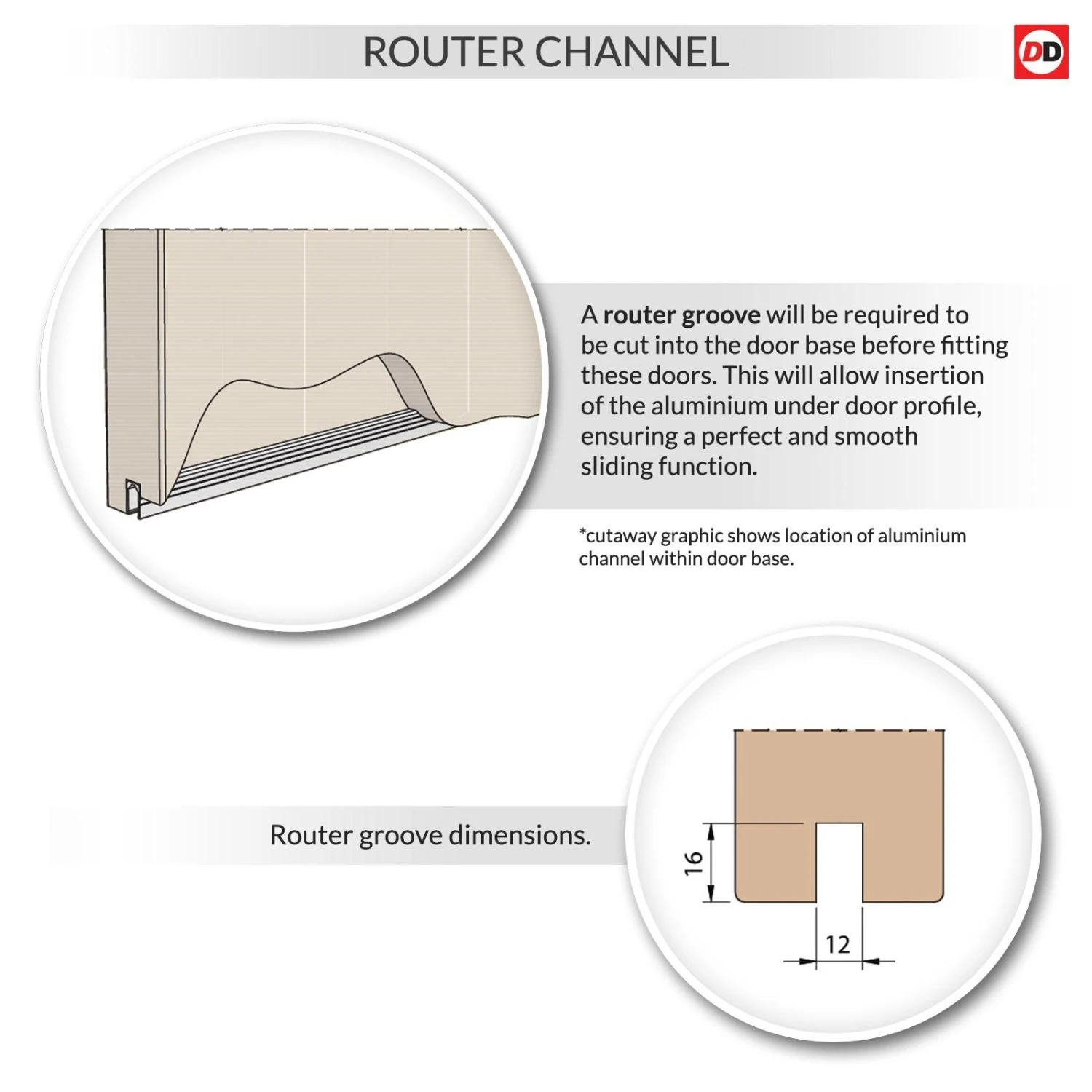

Other items such as flush door pulls and bathroom locks can all be purchased separately, doors will require a routered channel to be created in the bottom of the door to accommodate the supplied track guide.

The pocket door frame must be concealed within your own wall when installing.

—DETAILS—

Suggested Minimum Skill Level: Advanced DIY & Specialist Joinery Tools Required.

###

Dimensions: 35mm or 40mm door (depending on choice and availability) and a frame section of 100mm internal cassette cavity.

###

Notes: The sizes listed above are for the overall door and pocket set which includes the metal pocket frame and the Easy stop AB twin dual soft closer/opener but does not include a plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.

###

Important: All pocket door items are supplied in kit form, any glass is pre-installed in the door.

###

Normal Availability for our Delivery Service: See delivery icon on top of the product page.

###

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

###

Assembly: Self Assembly may take 3-4 hours

###

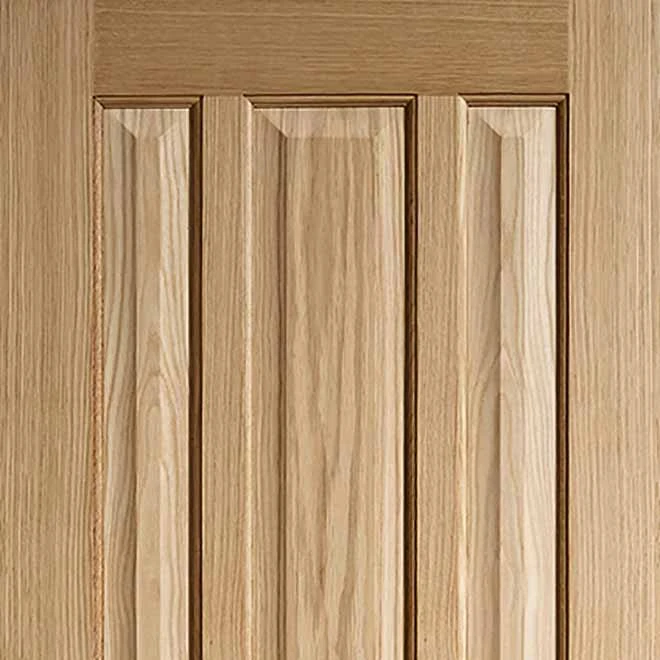

Construction: All doors are 35mm or 40mm thick depending on your choice, cores are semi solid/solid MDF or similar with a quality timber veneer or surface material for painted and white versions.

###

Price: The price quoted is for the door(s), pocket system frame, all track fittings, soft closer, but no handles, any glass shown is pre-installed in the doors.

—PDFS—

Cassette Dimensions: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/ABSOLUTE-EVOKIT-sgl.pdf?1476504774304718609

###

Cassette Assembly: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/Fitting_Instructions_Evokit_Absolute_2019.pdf?v=1603718422

###

Door Installation: //cdn.shopify.com/s/files/1/0003/4668/5492/files/Door-Fitting-instructions-Evokit-Absolute-DirectDoors-frameless.pdf?v=1638538362

###

Technical Specifications: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/Absolute-evokit-tech-specification-DirectDoors-sml.pdf?v=1591624012

—MEDIA—

EasyStop Installation: //www.youtube.com/embed/kvYMflwDLVI
