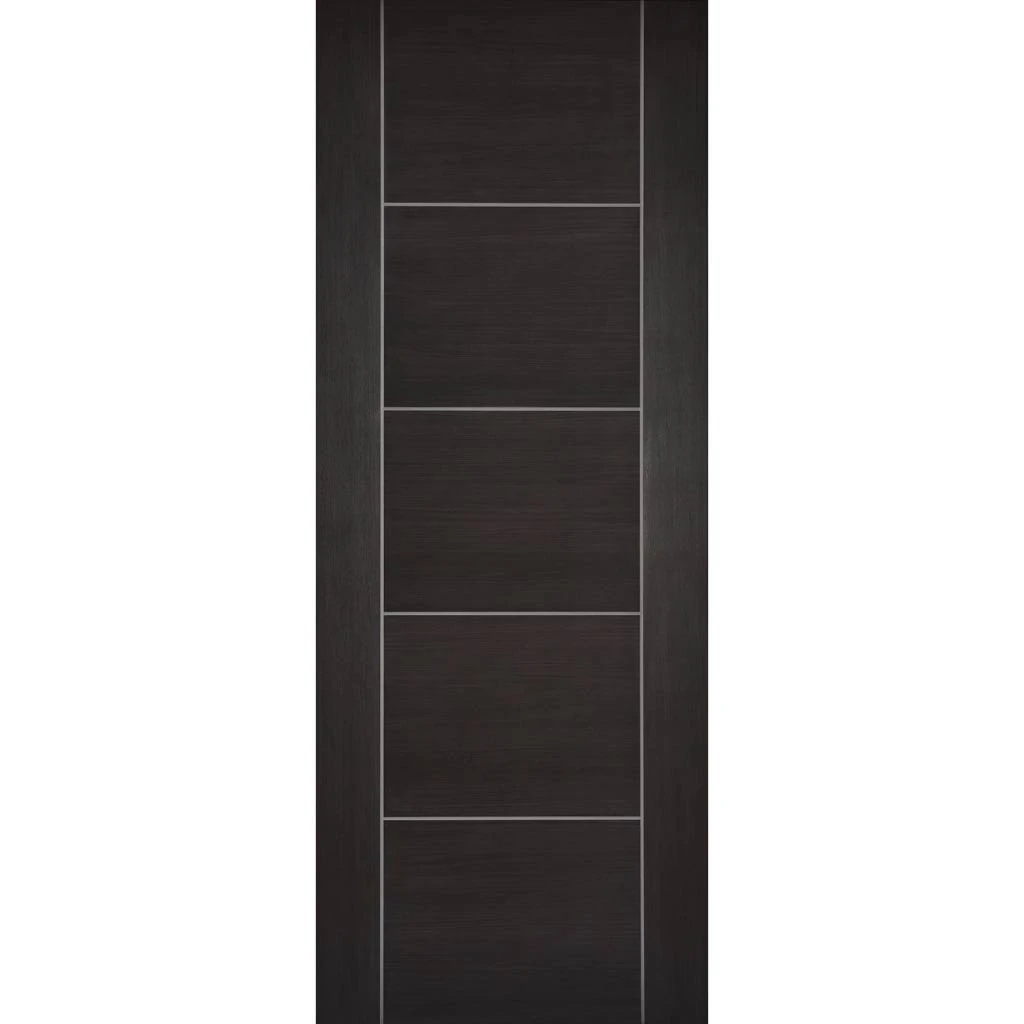

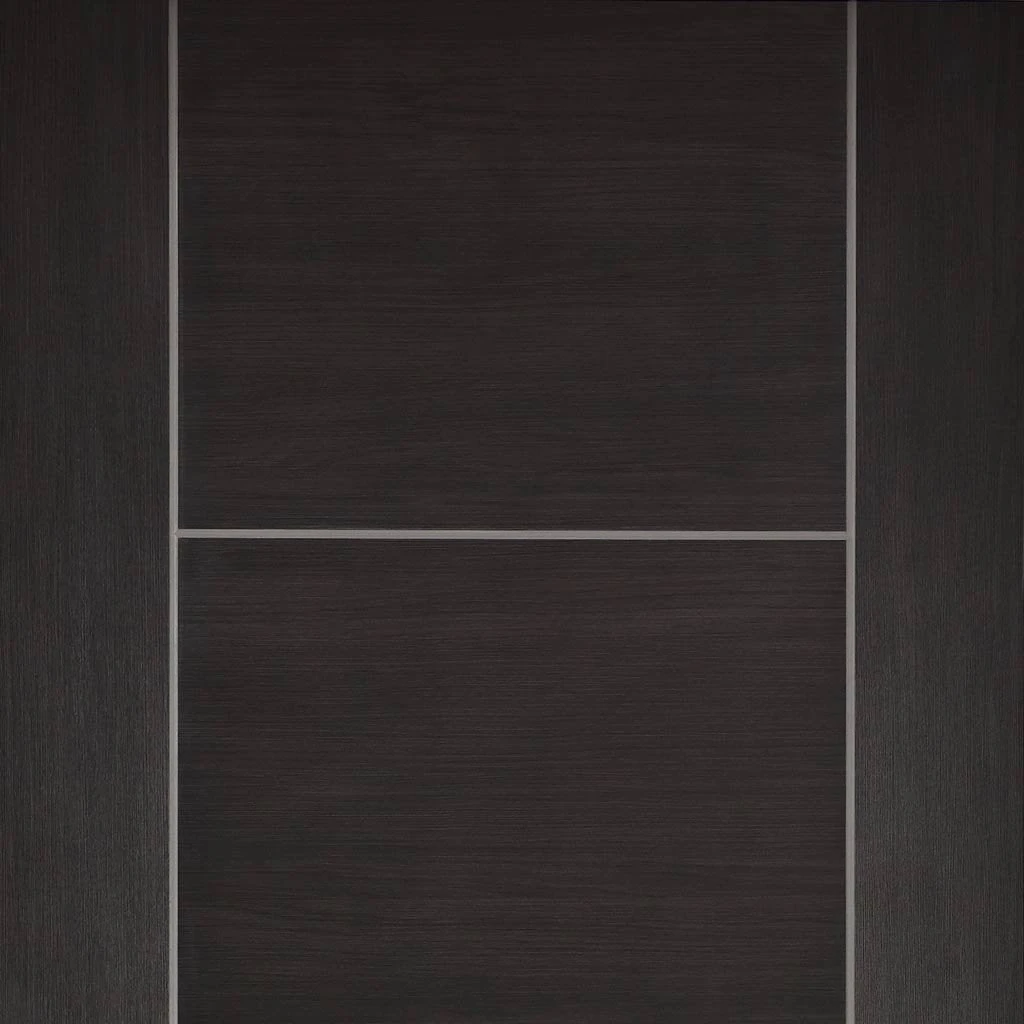

Laminate Vancouver Dark Grey Single Evokit Pocket Door – Prefinished

—SHORT—

All pocket cassettes or pocket self assembly kits may be kerbside delivery only and not in to the home….. doors are delivered separately.

We deliver for free to most UK Mainland postcodes and in order to offer best value and safety we include the soft closer.

All doors can slide open left or right, you decide when installing them, delivery will be from two separate suppliers.

—LONG—

A router will be required for door(s) installation.

Please click here to find our manufacturers care and decoration advice for this door.

System operation viewed from above:

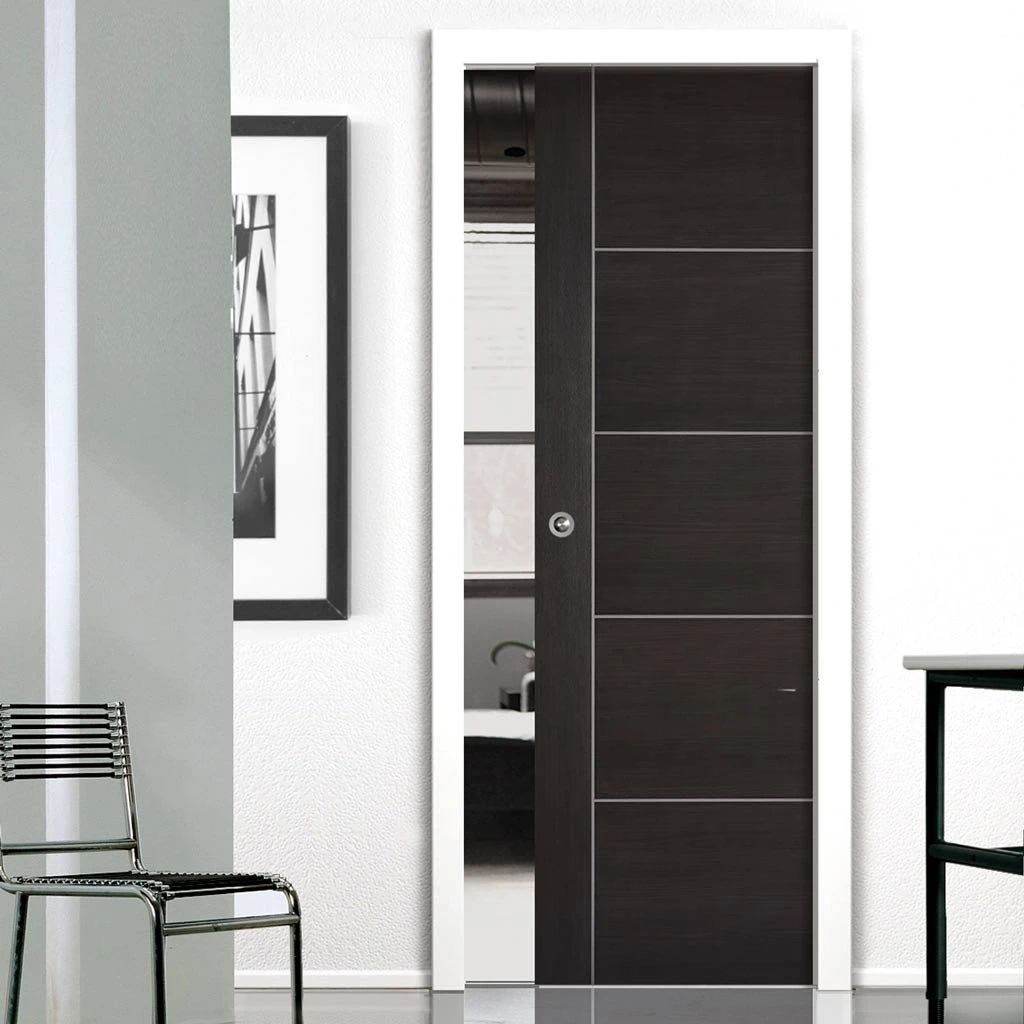

Our all new Interior Single Pocket Door Systems have free delivery as standard, these pocket doors come with full fitting instructions and the door system allows you to slide the door straight in to a cavity in a preformed wall aperture, the system incorporates a galvanised steel cassette section and a track set with all fittings, soft close is also included. The door may be supplied with full decoration but no decor is included to the cassette system parts or its frame, check each door as you browse for the exact details.

See our “Dimensions PDF” for all sizes but use as a guide only.

Email [email protected] to receive a quote for any special sizes.

The idea is to build the pocket to the same thickness as the studwork – 75mm (3″) or 100mm (4″) – which are the two standard studwork sizes generally in use, so that you can directly continue the standard 12.5mm plasterboard over the pocket providing the finished wall thickness of either 100mm (4″) or 125mm (5″).

Further layers of plasterboard can be added to increase the overall wall thickness, but other joinery work may be required. The inner door cavity (where the door slides in to the cassette pocket) is therefore 54mm or 79mm.

Size limitations apply for the following items – Soft Close and Self Close – please refer to the individual accessory description.

The Easy stop AB twin dual soft closer/opener is included, all other accessories for pocket doors including flush door handles can be purchased separately.

Please Note: If the Self Closing Kit is purchased, we will not include the Easy stop AB twin dual soft closer/opener as the two are not compatible and cannot work together.

Doors will require a routered channel to be created in the bottom of each door to accommodate the supplied track guides.

The pocket door frame must be concealed with your own wall and architraves when installing.

—DETAILS—

Suggested Minimum Skill Level: Advanced DIY & Specialist Joinery Tools Required.

###

Dimensions: 35mm or 40mm door (depending on choice and availability) and a frame section of 100mm or 125mm external dimensions/54mm or 79mm internal cassette cavity.

###

Notes: The sizes listed above are for the overall door and pocket set which includes the metal pocket frame and Easy stop AB twin dual soft closer/opener but does not include any handles, architrave or plasterboard, all doors require a groove to be cut in the bottom for the track guide to fit.

###

Important: All pocket door items are supplied in kit form, any glass is pre-installed in the door.

###

Normal Availability for our Delivery Service: See delivery icon on top of the product page.

###

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide. All jamb kits supplied to suit all pocket doors sizes and will therefore need cutting to height and width on site.

###

Assembly: Self Assembly may take 3-4 hours

###

Construction: See core icon on top of the product page.

###

Price: The price quoted is for the door(s), pocket system frame, all track fittings and EasyStop AB soft closer/opener, but no handles, any glass shown is pre-installed in the doors.

—PDFS—

Cassette Dimensions: //cdn.shopify.com/s/files/1/0003/4668/5492/files/single-evokit-pocket-door-dimensions.pdf?v=160312

###

Fitting Instructions with Soft Closer: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/Fitting_Instructions_Evokit_2022_October_-_DirectDoors-Single_2f4e2cf7-3770-4dbe-a6ea-113c191979e8.pdf?v=1675952904

###

Technical Specifications: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/single-evokit-technical-18-10-18.pdf?11254566461527364143

—MEDIA—

Evokit Cassette: //www.youtube.com/embed/81u8N41CMCI

###

Plasterboard Evokit: //www.youtube.com/embed/Kpnj2OvEEro

###

Jamb Kit Installation: //www.youtube.com/embed/y9hyuSd7T0o

###

EasyStop AB Installation: //www.youtube.com/embed/kvYMflwDLVI

###

Bracket Installation: //www.youtube.com/embed/5PEZsdn5uOc
