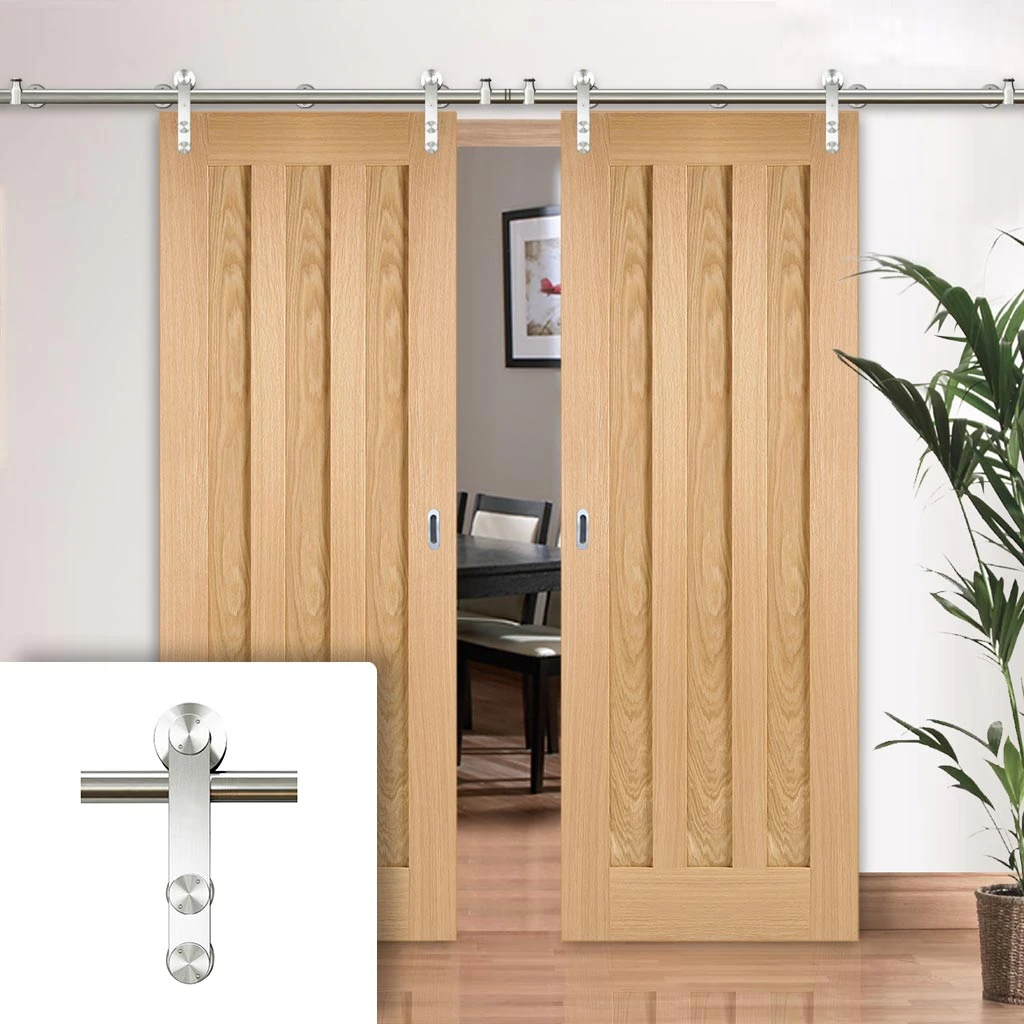

Saturn Tubular Stainless Steel Sliding Track & Idaho 3 Panel Oak Double Door – Prefinished

—SHORT—

All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

We deliver for free to most UK Mainland postcodes, please note you may receive deliveries from 2 or more suppliers.

—LONG—

A router will be required for door(s) installation.

Please click here to find our manufacturers care and decoration advice for this door.

Product Advice:

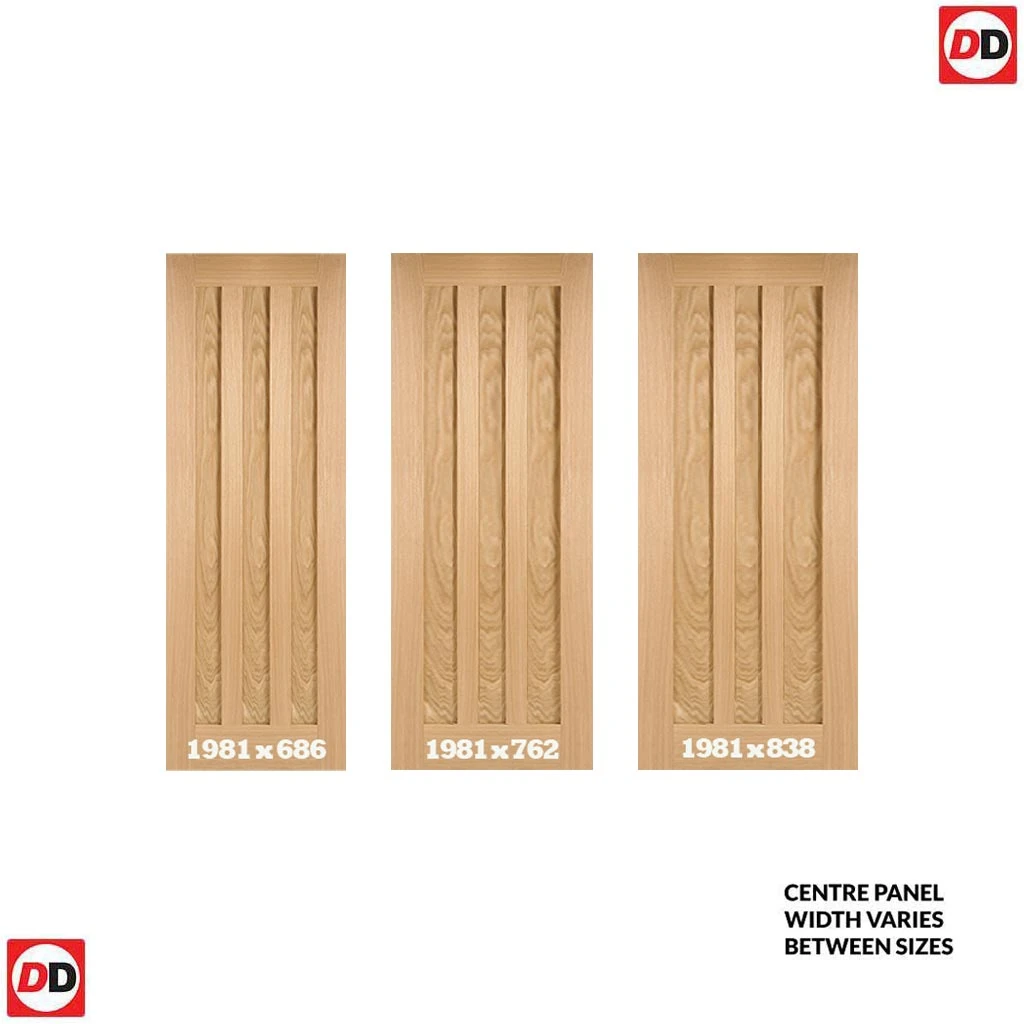

• We will always endeavour to supply the best size track available relative to the door size, 2x1500mm tracks are supplied for 686mm doors, 2x 1830mm tracks for 762 doors and 2x 1830mm tracks for 838 doors.
• Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door “covers” the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width/height.
• The type of architrave used or existing can impact on visible clearances.
• The prices shown include the door and track, all prices are inclusive of vat and delivery is free to most UK Mainland postcodes, delivery may be from 2 suppliers.

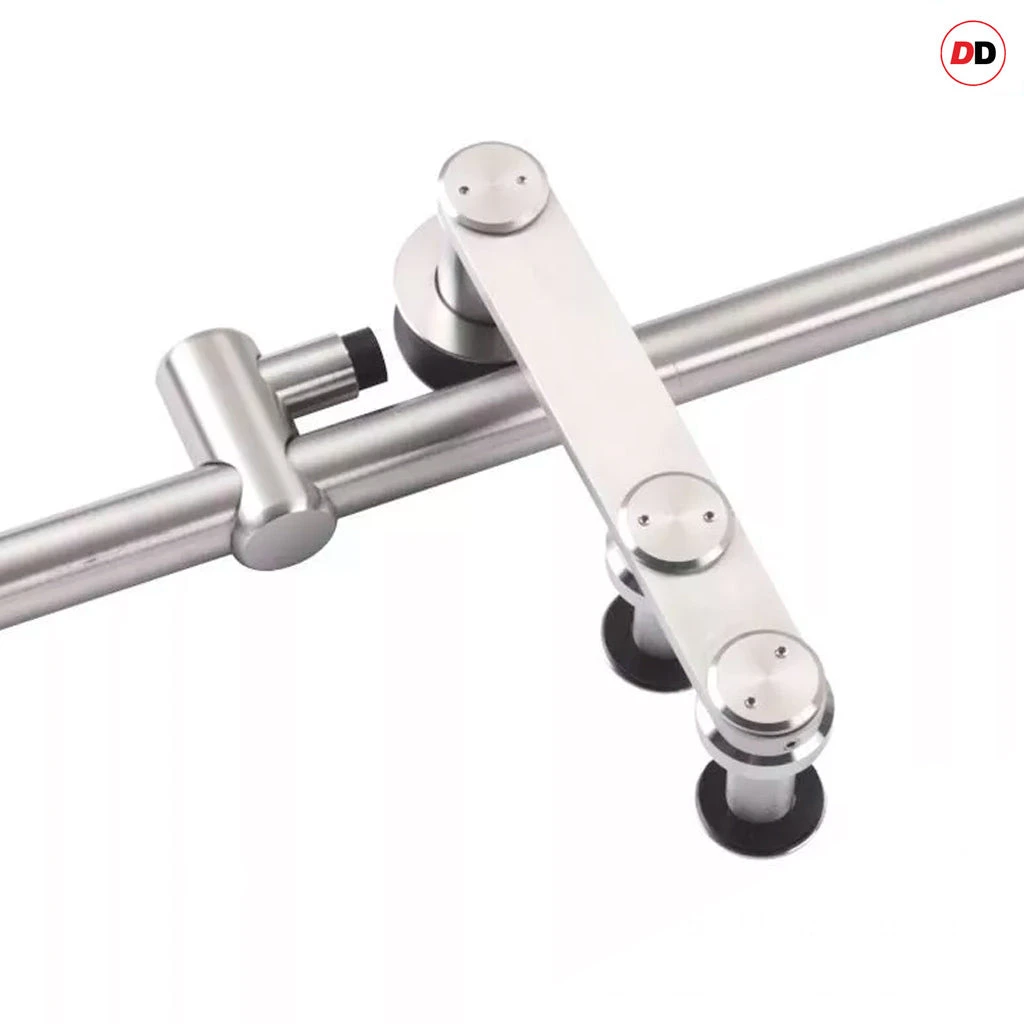

• A high-quality front-mounted stainless steel sliding track system, the front-mounted track is screwed to the front of the door which gives the whole system a very sleek look.
• There is an approx maximum of 2130mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.

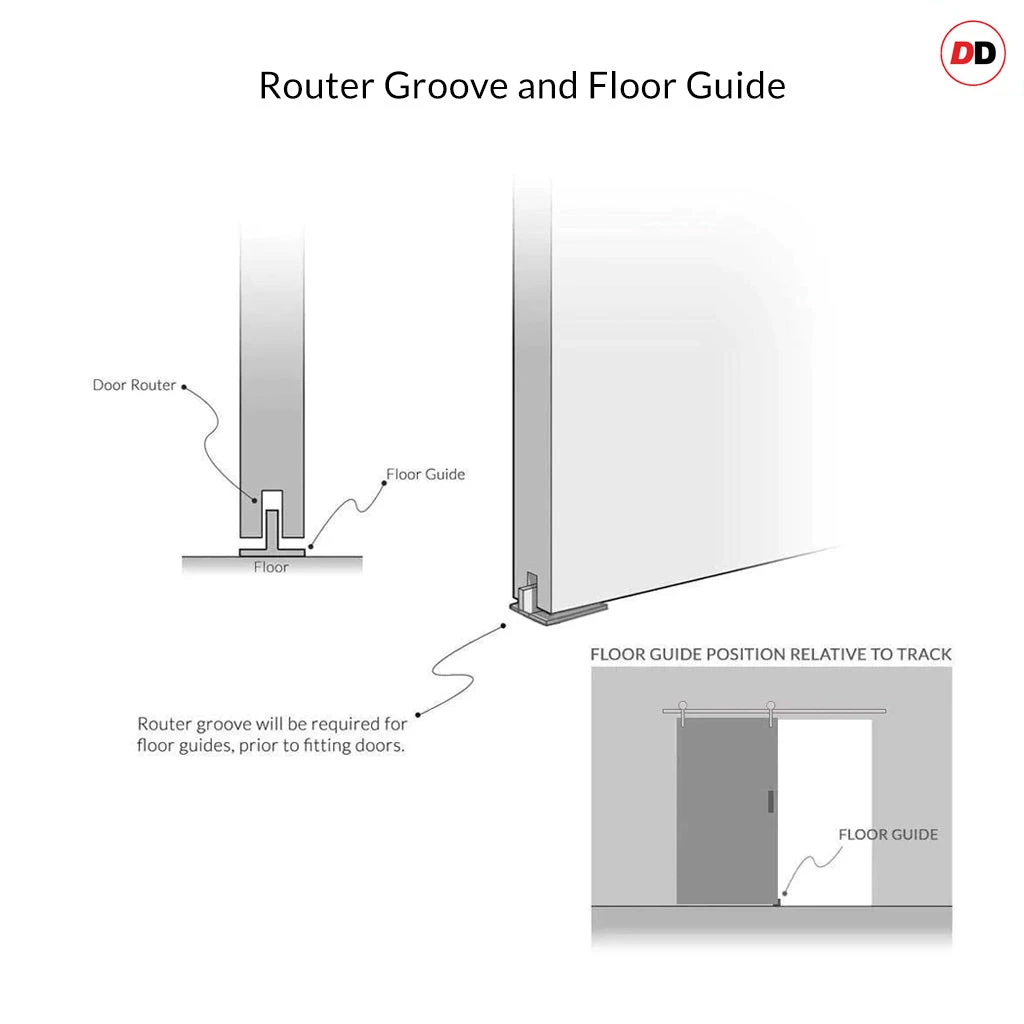

• Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
• Be very careful when setting any handle position and the track “stop” to prevent hand injuries.

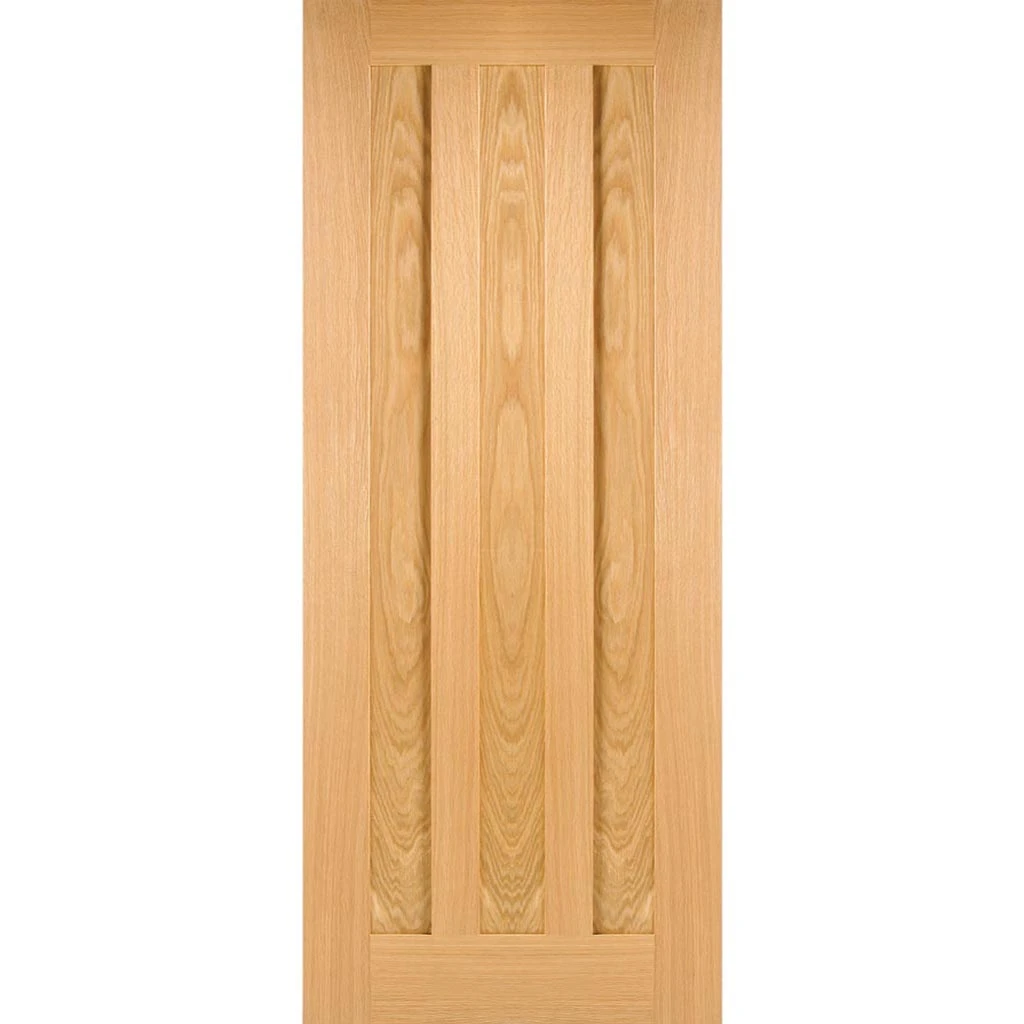

• All doors are 35mm or 40mm thick and have a solid or semi-solid core covered with a quality timber veneer or surface material for painted and white versions.
• See our full range of handles and fittings here.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you’re ready to begin we suggest standing your doors against a wall – look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural – should you require “book marked” grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

—DETAILS—

Price: Includes doors, track, soft close and joining bracket.

###

Supplier Delivery Timescale: See the delivery icon at the top of the product page.

###

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.

###

Door Thickness: 35mm or 40mm depending on the size chosen.

###

Guarantee: 12 months

###

Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke items created and manufactured by DIrectDoors.com.

—PDFS—

Component List: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/ThruSlide-Stainless-component-Front-Mounted-VS2-DD.pdf?v=1677834582

###

Jointing Bracket Fitting Instructions: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/DirectDoors-Thruslide-VS2-EC-doors-bracket-fitting-double-door-PDF.pdf?v=1677834582

###

Soft Closer Fitting Instructions: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/Soft_Close_Soft_Open_Tubular_Track_Front_Mounted.pdf?v=1676580369

###

1500mm Fitting Instructions: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/ThruSlide-DirectDoors_front-Mounted-Door-Track_smaller-directdoors-contemporary-track.pdf?v=1676581515

###

1830mm Fitting Instructions: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/ThruSlide-DirectDoors_front-Mounted-Door-Track_medium-directdoors-contemporary-track.pdf?v=1676581515

—MEDIA—

Soft Closer Fitting Instructions: https://www.youtube.com/embed/5GbOZiiOrig”https://www.youtube.com/watch?v=5GbOZiiOrig

—SKILLLEVELS—

Suggested Minimum Skill Level: Advanced DIY & Specialist Joinery Tools Required.

—DOORADJUSTMENT—

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.
