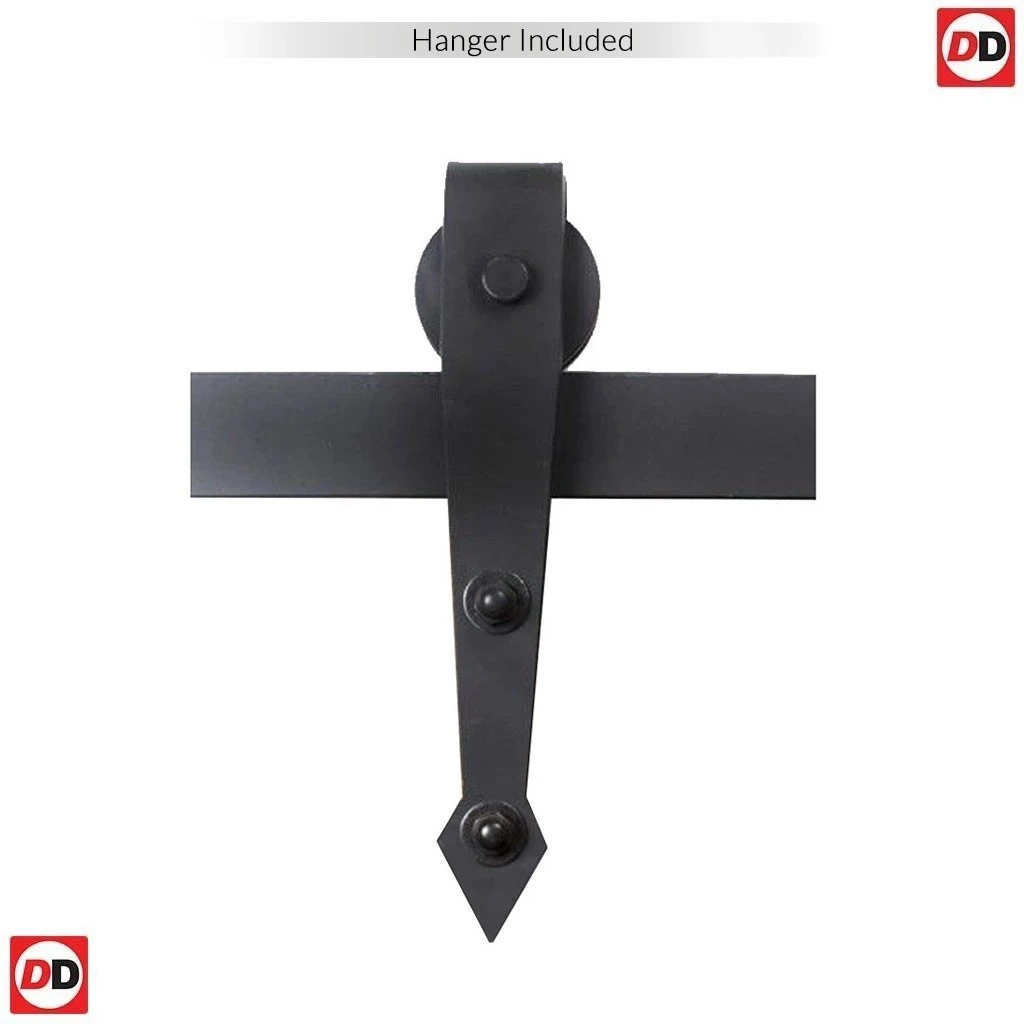

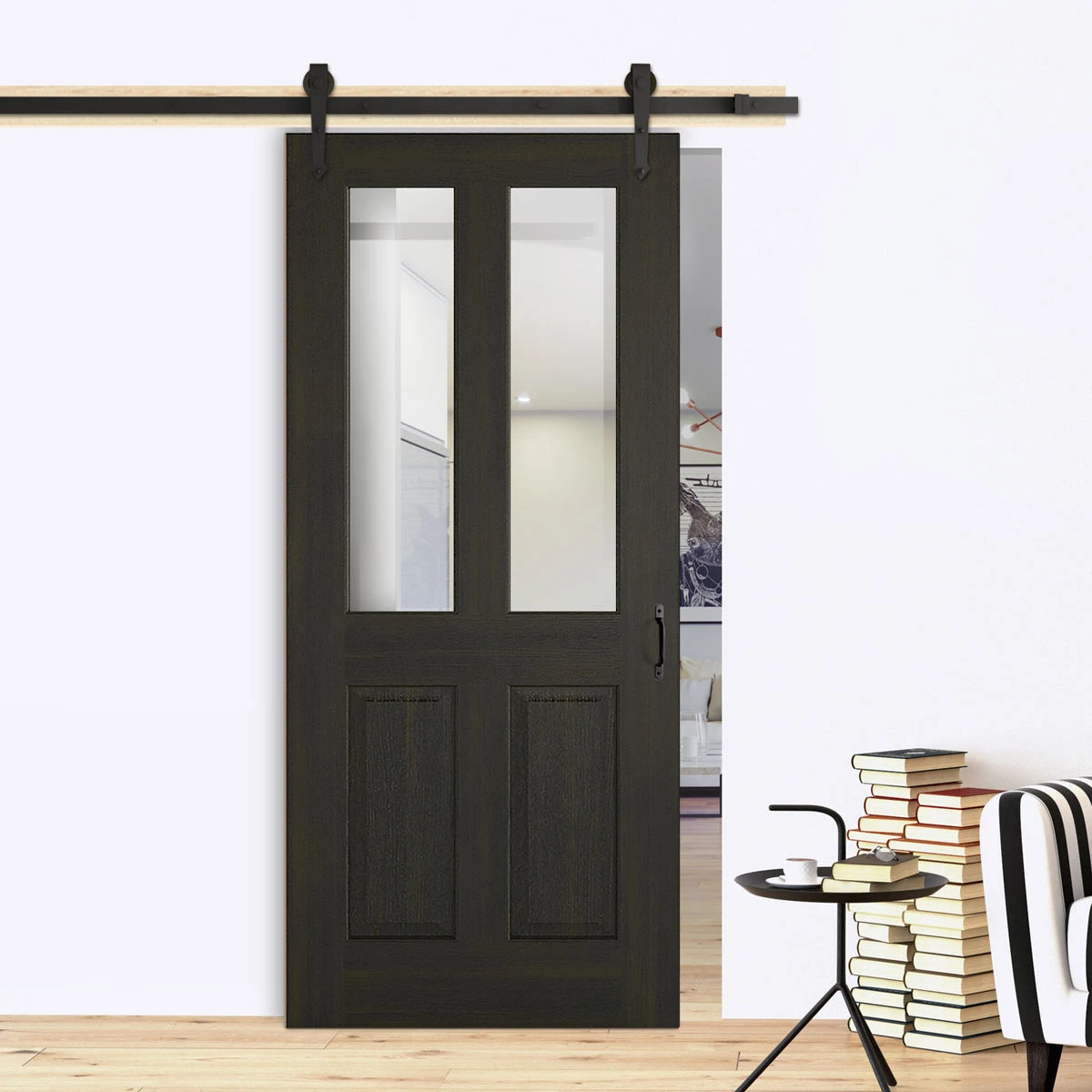

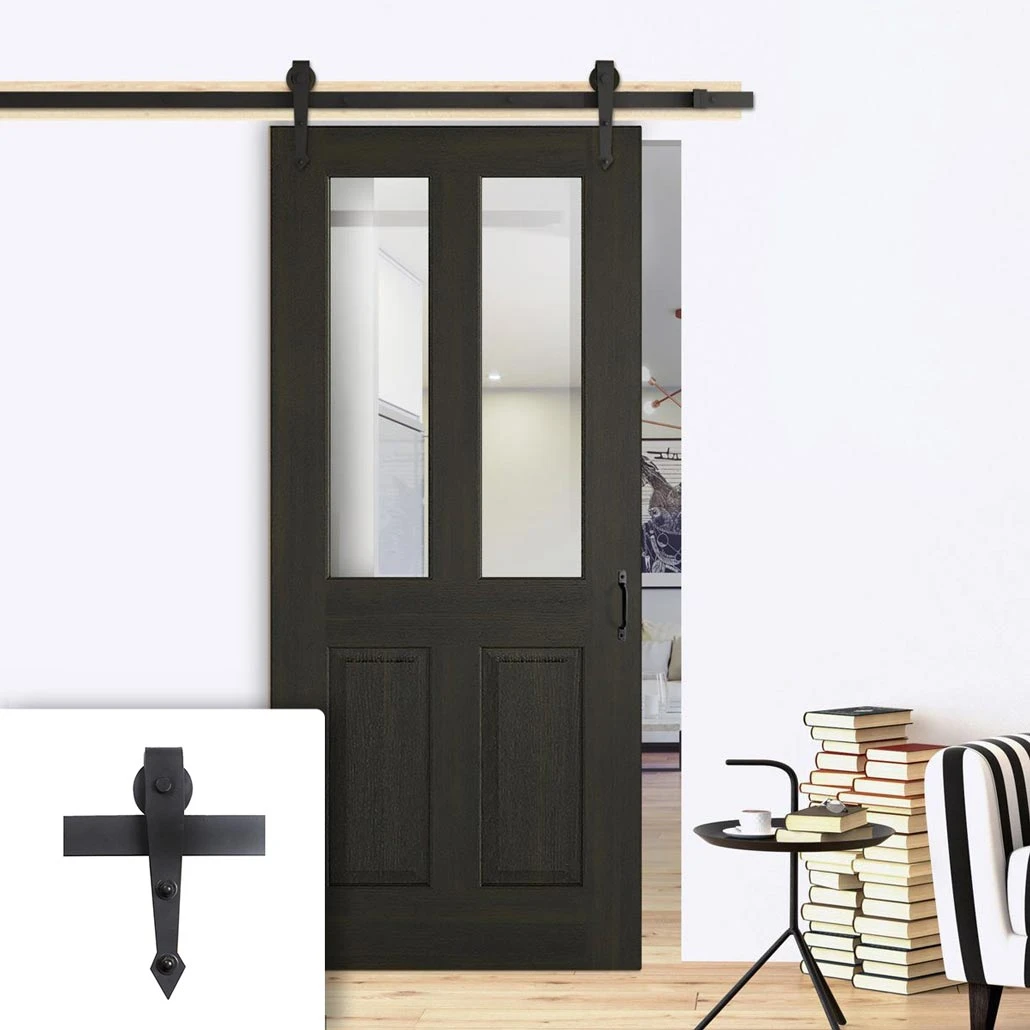

Single Sliding Door & Arrowhead Black Track – Richmond Smoked Oak Door – Clear Glass – Prefinished

—SHORT—

Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

—LONG—

A router will be required for door(s) installation.

Please click here to find our manufacturers care and decoration advice for this door.

Product Advice:

• We will always endeavour to supply the best size track available relative to the door size, 1500mm tracks are supplied for 686mm doors, 1830mm tracks are supplied for 762mm and 838mm doors.

  1500mm track overhang (L & R)	64mm (L & R) – 686mm wide door
  1830mm track overhang (L & R)	153mm (L & R) – 762mm wide door 77mm (L & R) – 838mm wide door

• Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door “covers” the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
• The type of architrave used or existing can impact on visible clearances.
• Prices show the door cost and then the cost for the track and wheel options, all prices are inclusive of vat and UK wide delivery which may be from 2 suppliers.
• There is a maximum 2133mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.

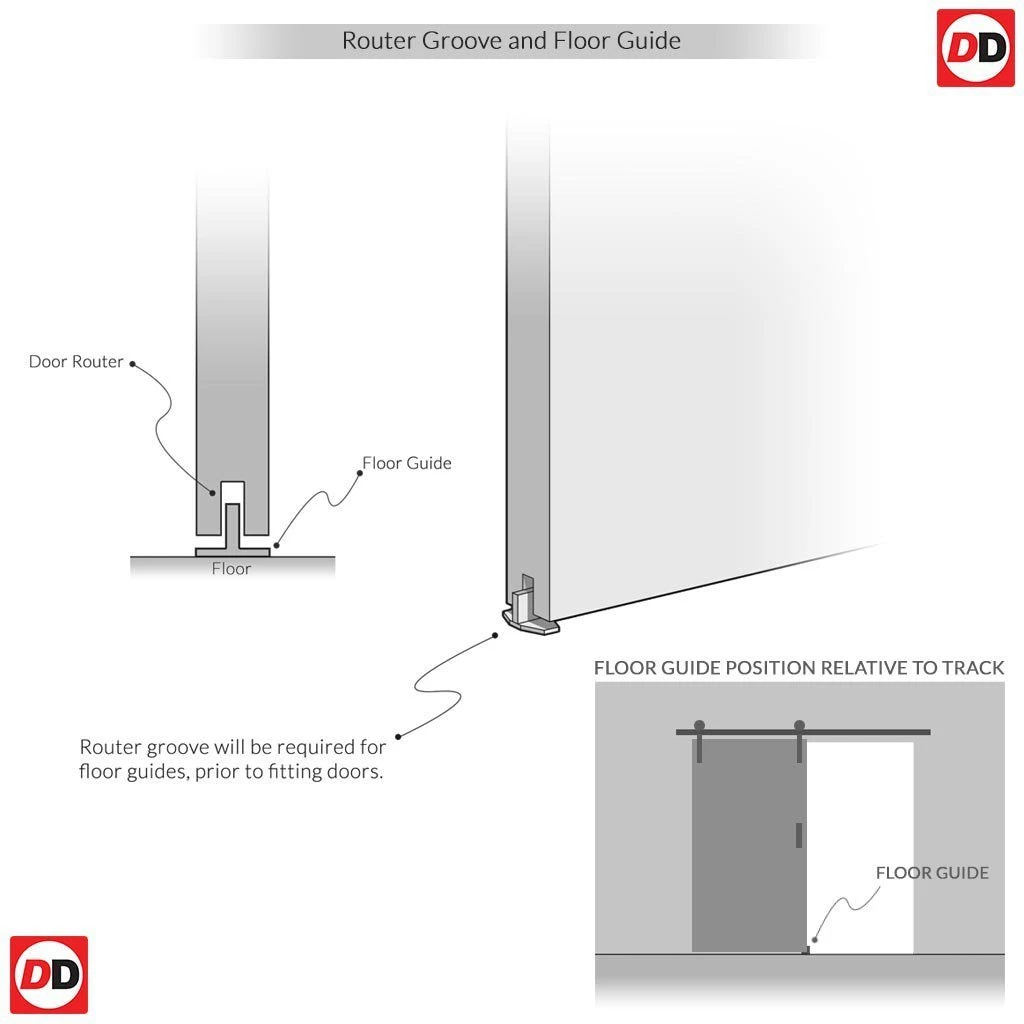

• Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
• Be very careful when setting any handle position and the track “stop” to prevent hand injuries.
• All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
• See our full range of handles and fittings here.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you’re ready to begin we suggest standing your doors against a wall – look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural – should you require “book marked” grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

—DETAILS—

Suggested Minimum Skill Level: Advanced DIY & Specialist Joinery Tools Required.

###

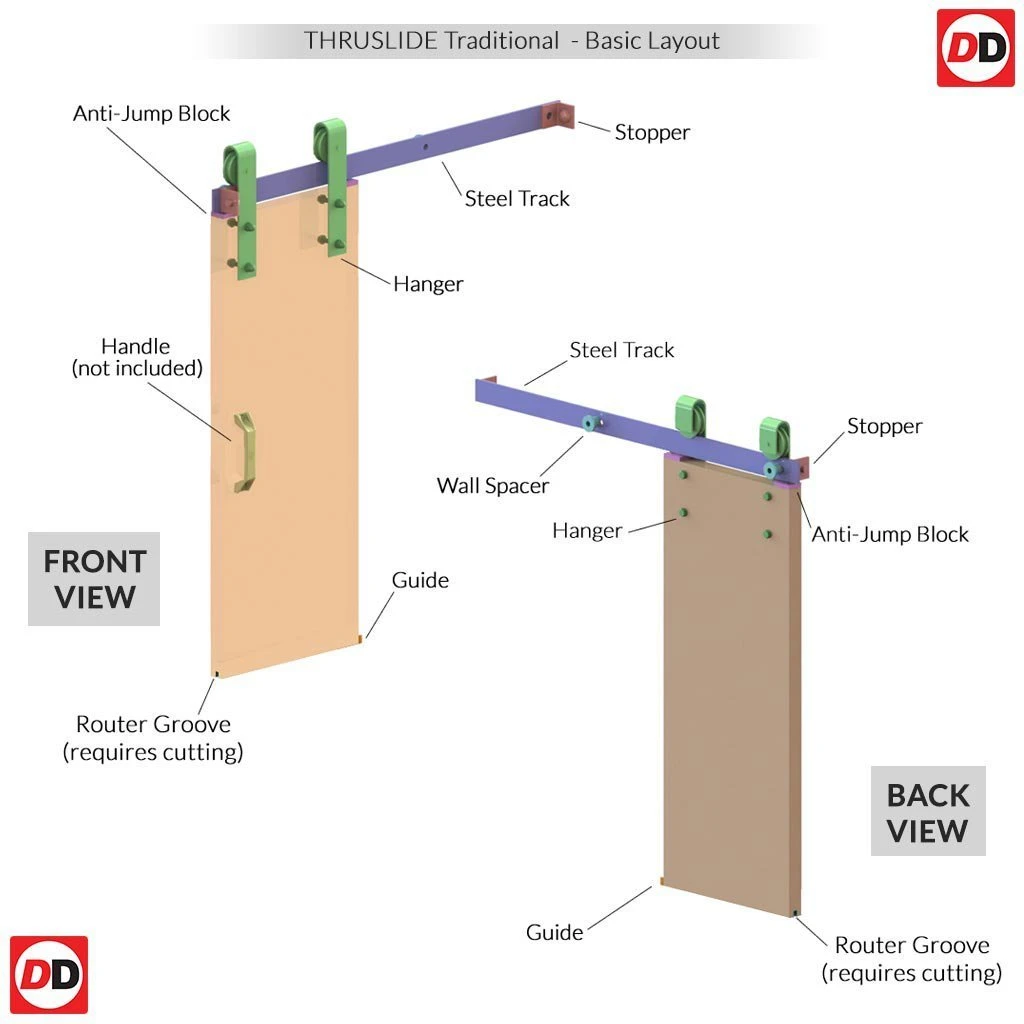

Price: Includes door, track, guides, anti-jump blocks, track stops, soft close mechanism, main screws/fixings.

###

Supplier Delivery Timescale: See delivery icon at the top of the product page.

###

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.

###

Door Thickness: 35mm

###

Guarantee: 12 months

###

Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DIrectDoors.com.

—PDFS—

Fitting Instructions: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/THRUSLIDE_TRADITIONAL-v2-guide-single-sliding-directdoors.pdf?v=1674572975

###

Safety Glass: https://cdn.shopify.com/s/files/1/0003/4668/5492/files/safety-toughened-glass-certification-BSEN12600-information-directdoors.pdf?v=1643887053

—MEDIA—

Assembly Advice (Including Floor Guide): https://www.youtube.com/embed/PUpoMKApIyo

###

Assembly Advice (Including Soft Closer): https://www.youtube.com/embed/CNksY62XVO8
